Swipe, Scan, Go: India’s IoT-Powered Metro Card System Rolls Out a Smarter Commute

India’s urban mobility is getting a tech-powered makeover. A new IoT-enabled Smart Metro Card System is being prototyped to revolutionize how commuters interact with public transport. Designed to streamline ticketing, reduce human error, and enhance real-time monitoring, this system blends RFID technology with web-based interfaces to create a seamless, contactless travel experience. The project, currently in its pilot phase, is part of India’s broader push toward intelligent transportation under its Smart Cities Mission.

Here’s a comprehensive breakdown of the system’s architecture, functionality, and future potential.

1. Core concept and design architecture

- The system is built around RFID-enabled smart cards that store travel credits and commuter data
- Two primary devices are used: one for card recharge and another for entry/exit scanning at metro stations

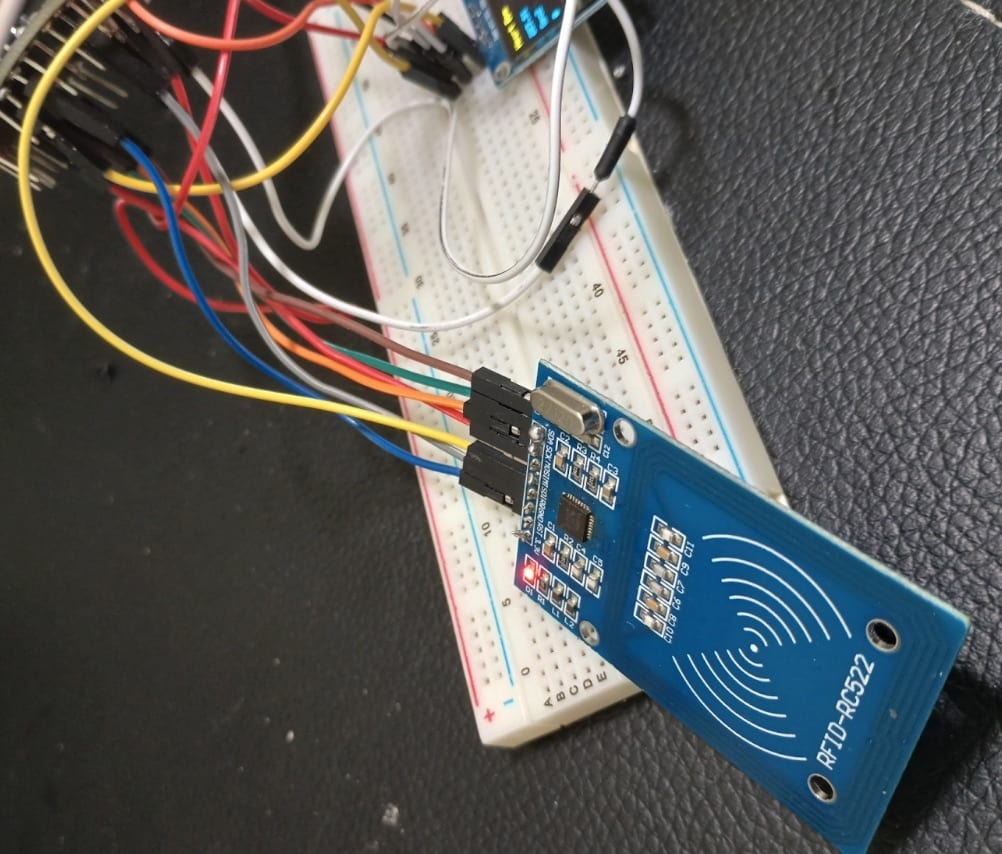

- Each device is powered by an IndusBoard Coin microcontroller and an RC522 RFID reader/writer module
- The recharge module allows station managers to top up cards using cash payments, while the entry/exit module automatically deducts fare based on travel distance

2. Step-by-step functionality

- Recharge process:
  - The commuter hands over their card at the recharge counter
  - The RFID reader scans the card and displays the current balance
  - The manager inputs the recharge amount, which is written onto the card via the RFID writer
  - The updated balance is displayed on a connected screen and stored in the system’s database

- Entry/Exit process:
  - At the station gate, the commuter scans the card on the RFID reader
  - The system logs the entry time and location, storing it in the backend
  - Upon exit, the card is scanned again, and the system calculates the fare based on distance or zones
  - The fare is deducted from the card, and the new balance is displayed to both the commuter and station staff

3. IoT integration and real-time monitoring

- The system uses Wi-Fi-enabled microcontrollers to transmit data to a cloud-based server
- Each transaction—recharge, entry, exit—is logged in real time and can be monitored remotely
- A web interface allows station managers to view commuter history, card balances, and system health
- The system supports UUID-based identification, ensuring secure and unique tracking of each card

4. Hardware and software components

- IndusBoard Coin microcontroller: compact, IoT-ready board for handling RFID operations and data transmission
- RC522 RFID reader/writer: used for scanning and updating card data
- Servo motor: controls gate access based on successful scan and balance verification
- Web dashboard: built using HTML and JavaScript, displays transaction logs and card status
- Recharge and scan codes: written in C/C++ using the MFRC522 library, customized for each device’s function

5. Benefits and scalability

- Reduces reliance on manual ticketing and cash handling
- Enables faster commuter flow and shorter wait times at stations
- Enhances transparency and accountability through digital logs
- Can be scaled to integrate with National Common Mobility Card (NCMC) standards
- Offers potential for integration with mobile apps, QR codes, and biometric verification

6. Challenges and future upgrades

- Requires robust cybersecurity protocols to prevent data breaches and card cloning
- Needs consistent internet connectivity for real-time updates
- Future versions may include NFC support, voice alerts, and AI-based fare prediction
- Integration with other transport modes—buses, e-rickshaws, suburban rail—will be key to full adoption

India’s metro systems are evolving from steel-and-concrete corridors into smart, responsive networks. The IoT-enabled Smart Metro Card System is more than a tech upgrade—it’s a blueprint for commuter dignity, efficiency, and digital inclusion. As cities expand and mobility demands grow, such innovations will define the future of urban transport.

Sources: Electronics For You, Metro Rail News, Metro Rail Today
